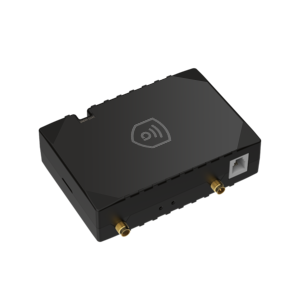

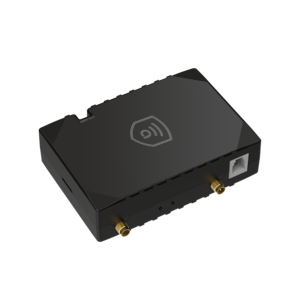

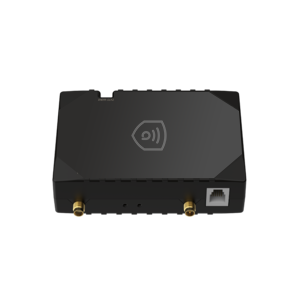

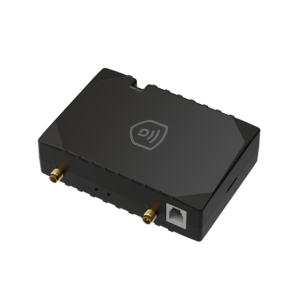

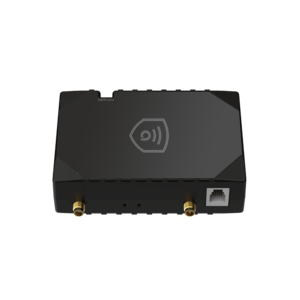

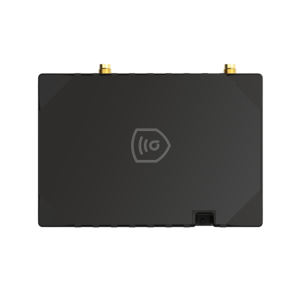

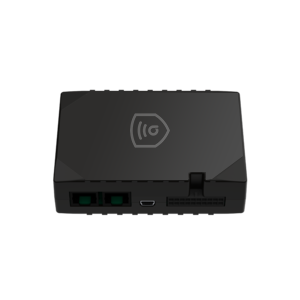

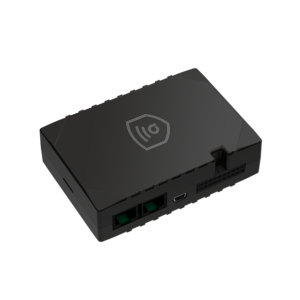

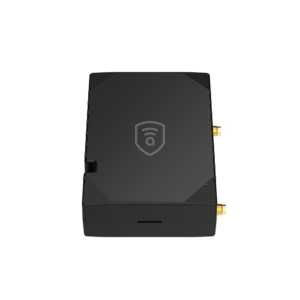

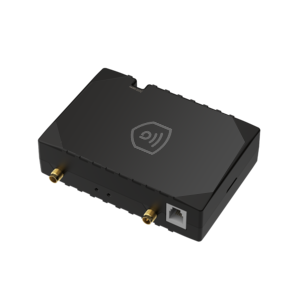

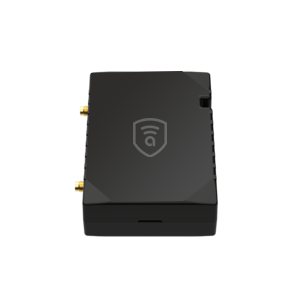

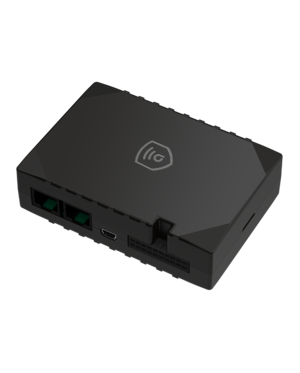

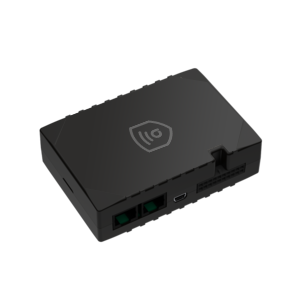

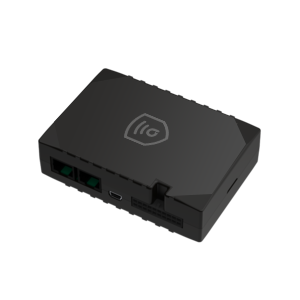

Amber Govern T400-LA

  • Feature
  • Spectrum Specifications
  • GNSS Specification
  • Other Specification
  • Downloads
  • Demo Video

  • Features

    Network
    - Reliable 4G connection with fallback to 3G and 2G network
    SIM
    - Dual SIM - significantly reduce roaming costs.
    Communication Interfaces
    - RS232/RS485 serial communication interfaces.
    ECU
    - CAN data reading from vehicles and specialized transport
    Data & Dowlnoad
    - Tachograph files and data remote download
    Bluetooth
    - Bluetooth for external devices and Low Energy sensors.
    Forward Collision Warning (FCW), including Urban Forward Collision
    - Alerts of imminent rear-end collision with a vehicle ahead
    Lane Departure Warning (LDW)
    - Alerts if the vehicle leaves the driving lane without use of the turn signal
    Pedestrian & Cyclist Collision Warning (PCW)
    - Alerts of imminent collision with a pedestrian or cyclist ahead, during daylight
    Headway Monitoring & Warning (HMW)
    - Alerts when the distance to the vehicle ahead becomes unsafe
    Speed Limit Indication (SLI)
    - Notifies of the new speed limit and if the driver exceeds it

  • Spectrum Specifications

    Technology LTE Cat 1, UMTS, GSM
    2G bands EG91-EX: GSM: B3/B8
    EG91-AUX: GSM: B2/B3/B5/B8
    3G bands EG91-EX: WCDMA: B1/B8
    EG91-AUX: WCDMA: B1/B2/B5/B8
    4G bands EG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28
    EG91-AUX: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
    Data transfer LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
    WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
    GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
    Data support SMS (text/data)
    SIM Card 2x SIM Card (Dual-SIM)

  • GNSS Specifications
    GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS
    Receiver Tracking: 33/99 acquisition channels
    Sensor Temperature and Humidity sensor, Universal BLE sensors support
    Positioning accuracy <2.5m CEP
    Tracking sensitivity -165dBm
    Velocity accuracy -<0.1m/s (within +/- 15% error)
    Acquisition Time Hot start < 1s,
    Warm start < 25s,
    Cold start < 35 s

  • Other Specifications
    Internal Back-up battery 550 mAh Ni-Mh, 8,4 V battery
    Input voltage range 10 - 30 V DC with overvoltage protection
    LED Indicator 2 status LED lights
    Operating temperature (without battery) -40°C to +85°C
    Device Dimension 104.1 x 76.8 x 31.5 mm (L x W x H)
    Weight 197.0 g
    Bluetooth 5.0 + LE
    Storage (buffer etc.) 2 MB internal flash memory and external Micro SD card up to 32GB
